AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread

Model Number : AFD5004R10

Supply Ability : 1000pcs/Month

Medium temperature : 0–90°C

Payment Terms : L/C, D/A, D/P, T/T,

Ambient operating temperature : -10°C to +65°C

Place of Origin : China

Price : Negotiable

Packaging Details : Standard Package

Delivery Time : 3-5Workingdays

Measurement accuracy : Flow accuracy < ±3.0% FS

Brand Name : YJJ

MOQ : 1

Supply voltage : 18–28 VDC

Contact Now

AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread

Model Breakdown
AFD5004: Product series + flow range specification; flow range: 0.5–4 L/min (measurement of very low liquid flow rates)
R: Thread type = RC3/8 (British Standard Taper Pipe Thread—internal, DN10 pipe size)
10: Output signal is RS485 (Modbus-RTU); includes local digital display; no temperature sensing function

Specification:

Pressure rating Rated 10 bar; maximum short-term pressure resistance 16 bar
Wetted materials PPS engineering plastic and 304 stainless steel
Communication RS485 Modbus RTU
Supported baud rates 4800/9600/19200/115200 bps; configurable device address (1–32)
Housing Includes digital flow rate display; does not include temperature measurement
Wiring 4-core cable (Power +, Power -, 485A, 485B)

Comparison of available output models in the same series
AFD5004A10: Rc3/8 thread, 4–20 mA analog output, with display
AFD5004V10: Rc3/8 thread, 1–5 V voltage output, with display
AFD5004N10: Rc3/8 thread, NPN switch output
AFD5004P10: Rc3/8 thread, PNP switch output

AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread


Product Tags:

Vortex-shedding liquid flow meter RS485 output



Medical air flow sensor RC3/8 thread



Liquid flow meter with warranty


Buy cheap AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread product

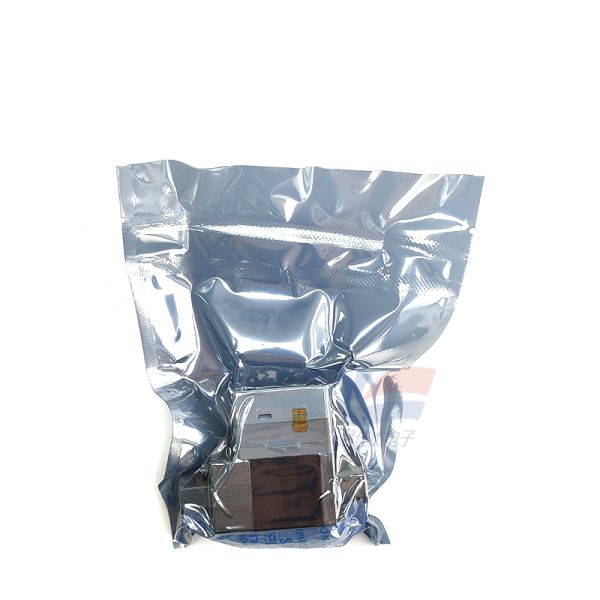

AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread Images
